Creating your own Arcade hardware

Contact the MakeCode Team

If you want to produce an Arcade compatible product please let us know at arcadehdw@microsoft.com.

Overview

The MakeCode Arcade system is designed to support a variety of physical gaming devices in addition to a more virtual experience on a PC or mobile device. We encourage others to design and build new variants of MakeCode Arcade hardware using the guidelines presented in this document.

Minimal Open Source Reference Design

Schematics screenshot

We have built a minimal open source hardware reference design for an Arcade board. This consists of a schematic (available as PDF and as Altium .SchDoc), a layout (available as Gerbers and related CAM files plus an Altium .PcbDoc), and a BoM (available as a Microsoft Excel file).

Arcade hardware must meet the following specifications:

  • An ARM Cortex M microcontroller (see MCU)
  • 160x120 pixel display (see display)
  • 4 directional buttons, 2 action buttons (A and B), 1 utility button (menu/select/pause), 1 reset button (see buttons)
  • single channel sound output (see audio)
  • USB connector for programming and power (see USB connector)
  • Some way to commission and possibly debug the board (see commissioning and debugging)

In addition we encourage:

  • a connector for multi-player communications (see Jacdac)
  • provision for battery power: a battery connector, a battery holder and/or a LiPo recharging circuit (see battery)
  • exclusion of a power LED which would draw unnecessary current (see power)

Other optional elements include:

  • an accelerometer or other motion sensor (see accelerometer)
  • a vibration motor (see vibration motor)
  • a 3.5mm stereo audio connector for headphones (see audio)
  • additional flash memory
  • status LEDs (see LEDs)
  • an electrical expansion connector to support the use of plug-in accessories and connection of external circuits (see expansion coonnector)

A firmware configuration system allows a lot of flexibility regarding specific component choices and circuit designs to meet the above specification, see Configuration.

The rest of this page is split into three main sections, each of which refers to our reference design:

Components

MCU

MakeCode Arcade currently only targets ARM Cortex-based MCUs; we have tested Cortex M4F and M0+.

The Arcade display resolution and colour depth requires 160x120x4 bits for a display buffer, taking a little under 10kB. We need at least two sets of display data for double-buffering and the user is very likely to use two or three more for various sprite operations. This, together with heap fragmentation concerns, requires the hardware to have at least 96kB of RAM. Programs with heavy memory requirements may only run if there is more than 96kB of RAM. In addition 512kB of flash and a processor speed of at least 64MHz or more are recommended.

We currently support the following hardware variants which match the above criteria:

  • D5 based on Microchip ATSAMD51G19A (Cortex M4F, 192kB of RAM, 512kB of flash, 120MHz)
  • F4 (formerly F401) based on one of the ST Micro STM32F4xx chips:
    • STM32F401xE (Cortex M4F, 96kB of RAM, 512kB of flash, 84MHz)
    • STM32F411xE (Cortex M4F, 128kB of RAM, 512kB of flash, 96MHz)
    • STM32F412xE (Cortex M4F, 128kB of RAM, 512kB of flash, 96MHz)
    • STM32F412xG (Cortex M4F, 256kB of RAM, 1024kB of flash, 96MHz)
  • R2 based on RP2040 (Cortex-M0+, 264kB of RAM, typically 2048kB+ of flash, 125MHz)

The STM32F41x series is listed to run at 100MHz, but to support USB we need to run them at 96MHz. We support 48 pin and larger packages. Only STM32F412 in 64 pin and larger packages support a parallel display interface, which is required if you want to use an ILI9341 320x240 display (see display).

Additionally, we have experimental support for the following:

  • N4 based on Nordic NRF52840 (Cortex M4F, 256kB of RAM, 1024kB of flash, 64MHz)
  • N3 based on Nordic NRF52833 (Cortex M4F, 128kB of RAM, 512kB of flash, 64MHz)

Of course, many other choices are possible and we would love to hear your feedback.

Display

When using a 160x128 pixel display we do not use the 8 bottom rows of the display, to make it easier to upscale to a 320x240 display. We use 15 colors plus transparency along with a user-controllable palette. Some of the displays we have tested are listed below, but if you have good reasons to use a different display please let us know.

160x128 based on ST7735 or ILI9163C controller chip

In this case the display is connected to the MCU using SPI. The chosen display must therefore expose the ST7735 or ILI9163C SPI interface. Different displays use different names for the same pins. The following are all equivalent:

  • RS, DC and A0
  • MOSI, SDA and DATA
  • SCK, SCLK, SCL and CLOCK
  • LEDK and LED-
  • LEDA and LED+
  • RESET and RST

Most displays don’t have a MISO line and in any case this does not need to be connected.

The purpose of the LCD_BL signal is to modulate power to the LCD backlight in order to dim or shut off the display. The reference design shows one way of doing this.

We have found the following part numbers for ST7735 and ILI9163C displays:

320x240 based on ILI9341 via SPI

On D5, the SPI can run up to 50MHz and most displays seem to be able to handle that, which results in about 36fps.

Also, use the following display configuration to begin with:

DISPLAY_TYPE = 9341
DISPLAY_WIDTH = 320
DISPLAY_HEIGHT = 240
DISPLAY_CFG0 = 0x08
DISPLAY_CFG1 = 0x0010ff
DISPLAY_CFG2 = 50

320x240 based on ILI9341 via 8-bit parallel

On F4, this requires an 8 bit parallel interface because SPI at 42MHz is unstable; in this case STM32F412RE or better is required.

The FSMC controller on STM32F412 in 64 pin version enforces the following pin connections:

Screen Function STM32F412RE
RD NOE PC5
WR NWE PC2/PD2
RS (D/C) A0 PC3
D0 D0 PB14
D1 D1 PC6
D2 D2 PC11
D3 D3 PC12
D4 D4 PA2
D5 D5 PA3
D6 D6 PA4
D7 D7 PA5


The CS pin of the screen can be connected anywhere (defined in bootloader as DISPLAY_CS). The RS pin is also currently handled in software, so could be anywhere, but it’s recommended to connect it to A0 (defined in bootloader as DISPLAY_DC).

The choice of the WR pin should be in DISPLAY_MOSI bootloader config, and DISPLAY_MISO should contain PC5 if the display read line is connected. Otherwise DISPLAY_MISO should be undefined. DISPLAY_SCK should always be undefined.

Also, use the following display configuration to begin with:

DISPLAY_TYPE = 9341
DISPLAY_WIDTH = 320
DISPLAY_HEIGHT = 240
DISPLAY_CFG0 = 0x08
DISPLAY_CFG1 = 0x0010ff
DISPLAY_CFG2 = 0x1000004

Note that the ILI9341 has 4 configuration pins IM3, IM2, IM1, IM0. The following configurations are supported:

IM3 IM2 IM1 IM0 Connection
0 0 0 0 D[7:0] - D7:D0
1 0 0 1 D[17:10] - D7:D0

That is, in the first config connect pin D[7] to PA5, D[6] to PA4, etc. In the second config, connect D[17] to PA5, D[16] to PA4, etc.

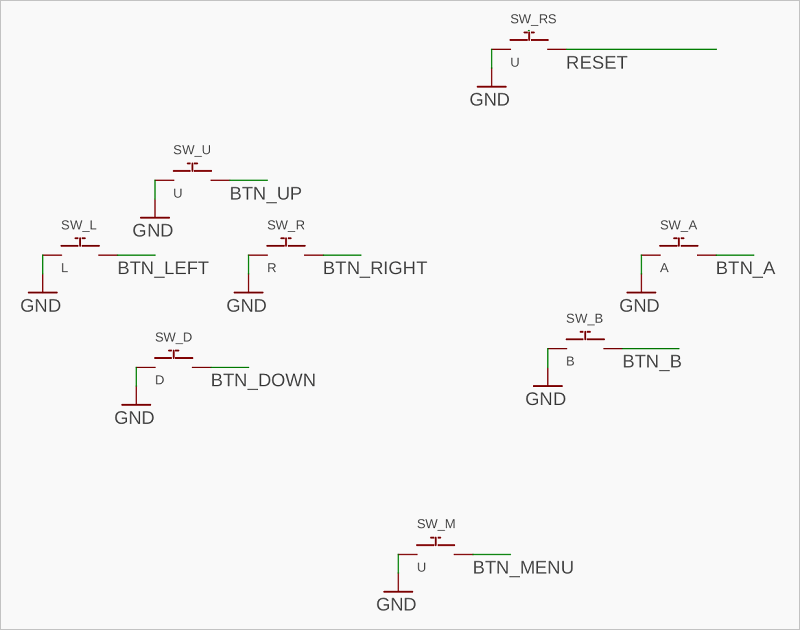

Buttons

We require a total of 8 buttons: left, up, right, down (in a directional pad or d-pad layout), A, B, Menu and Reset. The 4 directional buttons, the A/B buttons, and the MENU button are to be connected to an MCU GPIO pin to provide digital inputs. Our configuration system (see Configuration) allows for active high or active low button inputs. If the MCU has internal pull-ups or pull-downs, there is no need for external pull-ups.

The recommended button arrangement is to have the directional buttons in a ‘d-pad’ layout on the left of the board, while the A and B buttons are to the right. A is above and to the right of B. Menu is best placed somewhere near the other buttons, and Reset is best placed next to the USB connector.

One function of the Menu button is to exit low-power sleep mode. For an MCU with a ‘wakeup’ input pin that takes the MCU out of a deep sleep low power mode, Menu should be wired to that pin. The Reset button should be wired to the MCU reset pin.

Arcade boards should have ‘soft power off’ rather than a physical on-off switch, see power management.

Audio

Single channel mono audio output requires either a DAC or PWM with DMA support. The corresponding audio output from the MCU should be connected to an amplifier and an on-board sounder or speaker. A headphone jack for sound is optional. Note that we no longer use a stereo jack for networking, instead we use the purpose-built Jacdac protocol with its own connector. If there is an audio headphone jack it must be clearly labelled with a ‘headphone’ symbol.

USB connector

Arcade must have a micro USB socket for power and UF2 programming. We recommend a part with through-hole mechanical solder-down tabs to provide more strength, especially for ‘bare boards’ whcih have no physical enclosure to add mechanical strength. We recommend adding ESD protection for the USB data lines and a zener diode to clamp the Vbus power line and thereby limit over-voltage transients during USB connection.

Multi-player communications with Jacdac

Warning

Multi-player communication is under development. It’s fine to build prototypes, but before designing any production hardware please contact us at arcadehdw@microsoft.com.

Multi-player communications between Arcade devices is based on Jacdac, a protocol for networking over a single-wire connection.

Battery power

Arcade boards should ideally have provision for battery power: a battery connector, a battery holder and/or a LiPo recharging circuit. For regular batteries we suggest using a JST connector of the same style and polarity as that used on the Adafruit Circuit Playground Express.

Accelerometer

An accelerometer is optional. We currently support the following parts:

  • LIS3DH
  • MMA8453
  • MPU6050

If requested, we can potentially add support for other accelerometers such as MSA300.

The accelerometers should have the SDA, SCL and INT1 lines connected to each respective ACCELEROMETER_* line as defined in the bootloader.

Vibration motor

An optional vibration motor can be connected. It should be driven by the VIBRATION line as defined in the bootloader. Software will keep this pin low during normal operation, and drive it high to activate the motor.

LEDs

Up to 4 LEDs can be defined. The first can be used for Jacdac status.

Expansion connector

You may wish to include some kind of expansion connector that allows users to connect their own circuitry to your Arcade board. This could be a pin header that’s either fitted during production or left unpopulated for users to fit or solder to if desired. Alternatively, if a number of pins are to be exposed in an ‘edge connector’ style, one option is a micro:bit compatible edge-connector. Another approach is to use Jacdac so that it’s really easy for users to add or remove additional hardware functionality.

Hardware design notes

Power management

The Arcade firmware automatically switches the device off if it is not in use, unless the user has disabled this feature. A hardware power switch is therefore unnecessary. Not only does this reduce cost, the auto-power-off feature improves battery life.

In order to ensure very low quiescent consumption following auto-power-off, all peripherals to the MCU must enter a low power mode. We also put the CPU into deep sleep. The LCD backlight and audio amplifier will be switched off. Ensure that there is no power LED that cannot be turned off from the MCU. If you require an MCU output to signal shutdown there is an optional PWREN signal - if defined, the software will pull it high on boot, and keep it low during sleep. If you want to include a power LED, control it via the PWREN signal.

A 3.3V regulator is likely to be needed. It should be robust to any unfiltered transients on the USB power line and to downstream short-circuits which may occur if the Arcade board has no enclosure. If it is possible to touch the regulator, it must not get too hot to touch under any circumstances.

An optional BATTSENSE can be connected to a voltage divider and to the battery. This is not yet supported in software.

Comissioning and debugging

Provision must be made for commissioning boards following manufacture. Depending on the MCU it may be possible to flash and test the board over USB. However, to-date we have used a debug connector which exposes SWD and other signals, as shown in the reference design. We use a standard 0.1” pitch single row header footprint for this, but we do not fit a connector to the PCB. Instead we use the technique described here: debug connector information.

Pin mapping

The reference design provides a particular pinout (or pin mapping), but it is possible to use a different pinout. You need to put your pinout in the bootloader and flash the bootloader. Then, when you get a UF2 file from the Arcade website, it will at runtime look for settings such as the pinout in the bootloader and use the right pins.

There are some restrictions on the pinout:

  • if using SPI screen, if needs to be on SPI pins; on F4 best use SPI1 as it may allow for faster refresh in the future
  • DISPLAY_BL should be on a pin with PWM (so we can dim it)
  • MENU button should be a pin which can wake the MCU up from sleep mode (on D5 it requires EIC; on F4 it can be any pin)
  • other buttons can be on any pin
  • JACK_TX if present needs to be on UART_TX pin on F4, and on PAD0 of a SERCOM with EIC on D5
  • JACK_SND if present needs to be on TIM1_CH* pin of F4 and DAC0 of D5 (PA02)

Firmware development notes

Bootloaders

There are different bootloaders to support the hardware variants. These bootloaders support the CF2 configuration data section.

The following bootloaders do not support the CF2 configuration data section yet.

Compilation

If you’re compiling a bootloader on your own, you will need to create a board.h file. Start from an existing, generic arcade board (README in bootloader should have instructions). Then:

  • if you don’t have accelerometer, remove all lines with the ACCELEROMETER word
  • if you don’t have vibration motor, remove the line for PIN_VIBRATION
  • if you are not doing a pin header:
    • maybe you want to leave holes for people to solder a header in?
    • otherwise, remove all PIN_Dx, and PIN_SDA, PIN_SCL, PIN_MISO, PIN_MOSI, PIN_SCK, PIN_SERVO_x entries
  • if you have fewer than 4 LEDs remove PIN_LEDx
  • if you do not have a way to disable power to external components, remove PIN_PWREN
  • if you don’t have Jacdac, remove PIN_JACK_*
  • if you don’t have Jacdac power, remove PIN_JACK_PWREN
  • if you don’t have second menu button (it’s not required), remove PIN_BTN_MENU2
  • if you don’t have a voltage divider for measuring battery level (which isn’t supported yet anyway), remove PIN_BATTSENSE

Once you’re done with all these changes, drop the board.h file onto https://microsoft.github.io/uf2/patcher/.

This should load the config, with stuff removed. Now you can patch the config with your pinout. You should at least change BOOTLOADER_BOARD_ID to a new random value. DO NOT generate it by banging on the board or using a clever hex string, use printf "0x%04x%04x\n" $RANDOM $RANDOM to minimize the risk of a conflict

If you’re seeing strange effects on the display, you can try one of the following configs:

DISPLAY_CFG0 = 0x01000080
DISPLAY_CFG1 = 0x00000603
# or:
DISPLAY_CFG0 = 0x00000080
DISPLAY_CFG1 = 0x00000603
# or:
DISPLAY_CFG0 = 0x00000090
DISPLAY_CFG1 = 0x000e14ff

For the ST7735 and ILI9341 screens:

  • the low byte of CFG0 is the MADCTL register
  • the next two bytes of CFG0 are offset X and Y (if the display doesn’t start at 0, 0)
  • the lowest bit of high byte of CFG0 can be set to enabled XOR of palette
  • CFG1 is FRMCTR1
  • the low byte of CFG2 is the desired SPI frequency in MHz (ignored for ILI9341)

The patching website can also remove config entries, just specify the value as null.

Once you’re done patching, select “Apply my patch”, which will download new board.h.

Note that you need to use the patching website to put the right header and size in the configuration data. It’s also possible to patch a binary file of the bootloader with new config using the same website.

Bootloader protection

End users will typically update the bootloader by copying a special UF2 file, which has a user-level application that overwrites the bootloader.

To prevent misuse of this feature (eg one student emailing to a another a malicious UF2 file which writes a non-functional bootloader), some bootloaders (currently only F4) implement a protection feature. When booting, the bootloader will check if it’s write-protected (this is done by setting bits in flash, which only take effect upon reset). If the write-protection is disabled, presumably during a bootloader update process, the bootloader will present a screen to the user asking if they really want to update the bootloader and that doing so could possibly brick the board. If the users agrees to upgrade, the app is allowed to run (and presumably update the bootloader). Otherwise, the protection is re-enabled.

The default configuration of the bootloaders have this feature disabled to ease the development process. To enable it, set BOOTLOADER_PROTECTION = 1.

Variant notes

F4

STM32F4 requires an external crystal for stable USB operation. The software takes the installed crystal frequency from a specific bootloader location, but best to stick to 8MHz.

The following is the recommended pinout. The recommended pinout for header was described above. It’s consistent with the config for the generic F4 in the bootloader repo.

# 64 pin package F4

PIN_ACCELEROMETER_INT = PC13
PIN_ACCELEROMETER_SCL = PB10
PIN_ACCELEROMETER_SDA = PB03

PIN_BTN_A = PC00
PIN_BTN_B = PC01
PIN_BTN_DOWN = PB02
PIN_BTN_LEFT = PA04
PIN_BTN_MENU = PC02
PIN_BTN_MENU2 = PC03
PIN_BTN_RIGHT = PC09
PIN_BTN_UP = PB05

PIN_DISPLAY_BL = PB09
PIN_DISPLAY_CS = PB12
PIN_DISPLAY_DC = PB04
PIN_DISPLAY_MISO = PA06
PIN_DISPLAY_MOSI = PA07
PIN_DISPLAY_RST = PC12
PIN_DISPLAY_SCK = PA05

PIN_JACK_PWREN = PC10
PIN_JACK_SND = PA08
PIN_JACK_TX = PB06

PIN_LED1 = PB00
PIN_LED2 = PB01
PIN_LED3 = PC07
PIN_LED4 = PC06

PIN_BATTSENSE = PC04
PIN_PWREN = PA15
PIN_VIBRATION = PC08
# 48 pin package F4

PIN_ACCELEROMETER_INT = PC13
PIN_ACCELEROMETER_SCL = PB10
PIN_ACCELEROMETER_SDA = PB03

PIN_BTN_A = PB08
PIN_BTN_B = PA15
PIN_BTN_DOWN = PB02
PIN_BTN_LEFT = PA04
PIN_BTN_MENU = PA01
PIN_BTN_MENU2 = null # or PB01
PIN_BTN_RIGHT = PA10
PIN_BTN_UP = PB05

PIN_DISPLAY_BL = PB09
PIN_DISPLAY_CS = PB12
PIN_DISPLAY_DC = PB04
PIN_DISPLAY_MISO = PA06
PIN_DISPLAY_MOSI = PA07
PIN_DISPLAY_RST = PB07
PIN_DISPLAY_SCK = PA05

PIN_JACK_PWREN = PA00
PIN_JACK_SND = PA08
PIN_JACK_TX = PB06

PIN_LED1 = PB00
PIN_LED2 = PB01 # or null
PIN_LED3 = null
PIN_LED4 = null

PIN_BATTSENSE = null
PIN_PWREN = PC15
PIN_VIBRATION = PC14

D5

JACK_TX needs to be on a pin with external IRQ and PAD0 of some SERCOM.

JACK_SND needs to be on PA02 (DAC output).

R2

For RP2040, the application looks for CF2 section (see below) at 4kB before the end of 1MB, 2MB, 4MB, 8MB, 16MB, 32MB (that’s megabytes) in the flash. It’s recommended to place it at all these addresses (size of flash permitting). See sample config UF2. Manufacturers should provide a “factory reset” UF2 which contains all these config sections, and possibly a test game. This file can be used to recover after the flash has been overwritten (eg by large files in the Micropython filesystem).

Configuration

We anticipate the future need of various configurations for display controllers, as well as different accelerometers, etc. Thus, we generate the same UF2 file for all boards of a given variant, and have the runtime look for configuration values in the bootloader area (called CF2 configuration).

See https://github.com/microsoft/uf2/blob/master/cf2.md for more details on the configuration format. The bootloaders can be binary patched with new configuration data if needed.

The configuration data also includes the assignment of a GPIO pin header. Generally, the header isn’t essential to this board, but it’s recommended to at least leave holes for people to solder it in.

The mapping between MCU GPIOs and the various hardware signals such as the buttons and display interface is specified in the bootloader. They can be changed as described above.
